Weller T0053298390. WE 1010 EDUCATION KIT 230V

Name: Weller T0053298390. WE 1010 EDUCATION KIT 230V
Brand: Weller
SKU: 53298390
Price: 34914.28 RUB
Availability: InStock

34 914,28 ₽

Артикул

53298390

WE 1010 Education Kit

Часто покупают вместе

Всего

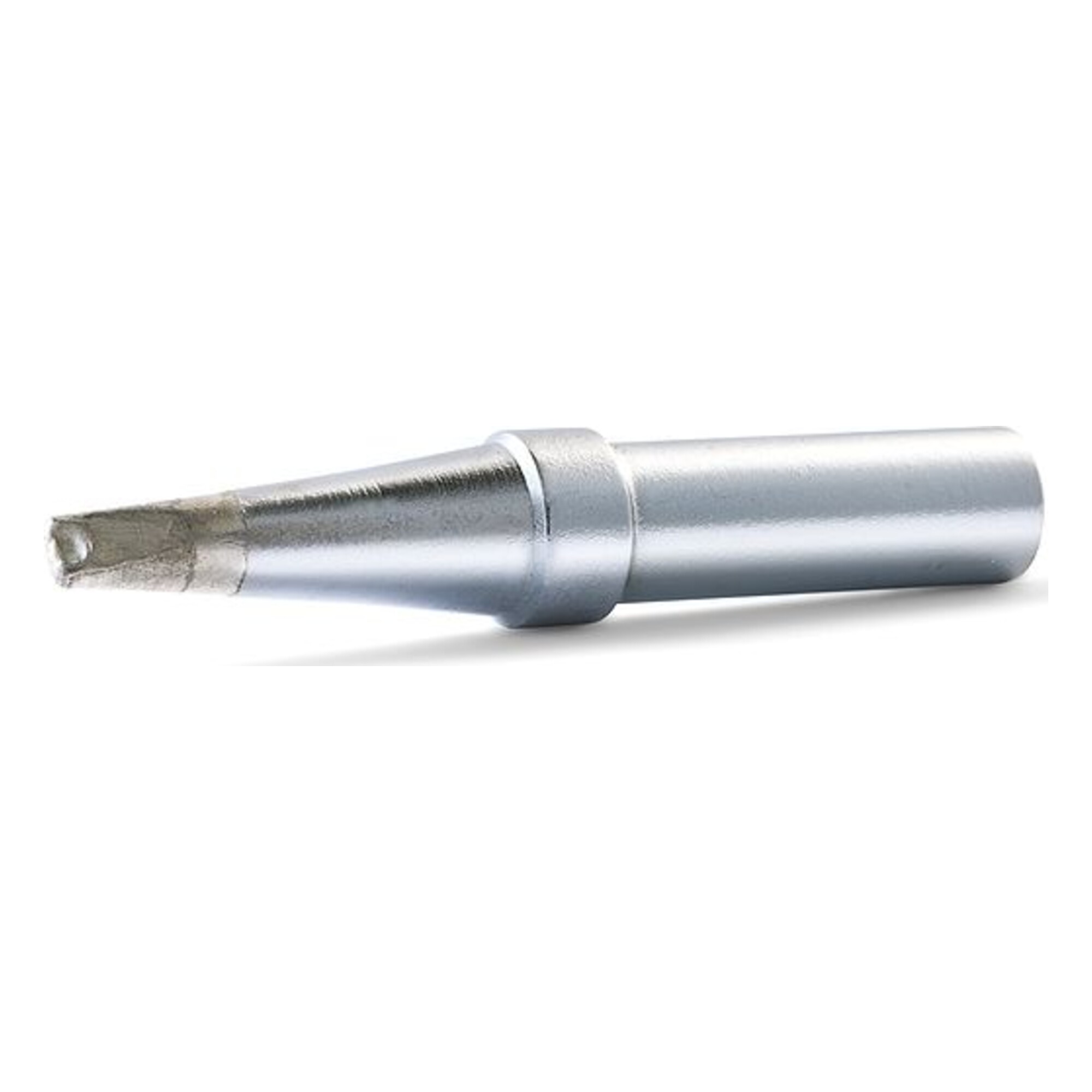

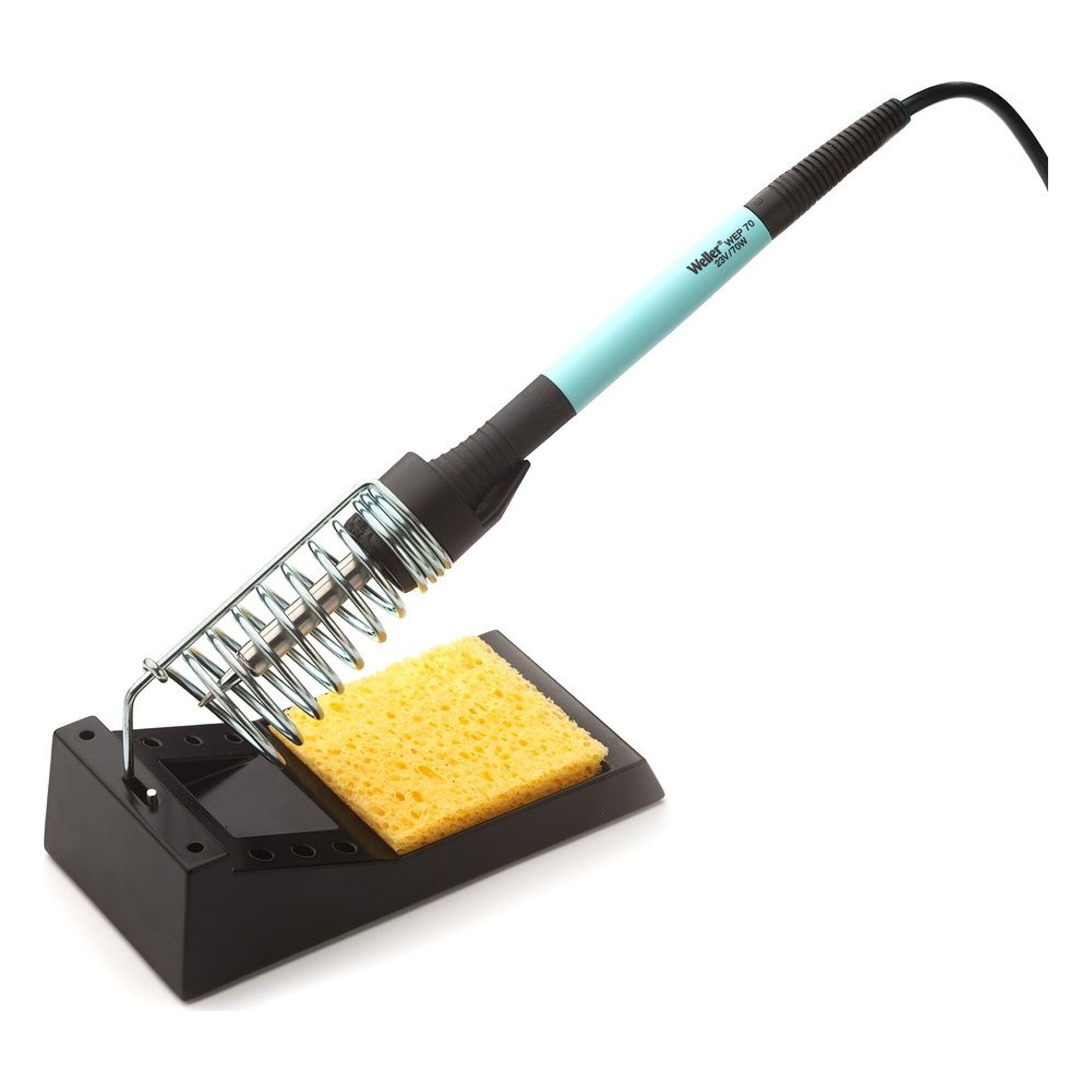

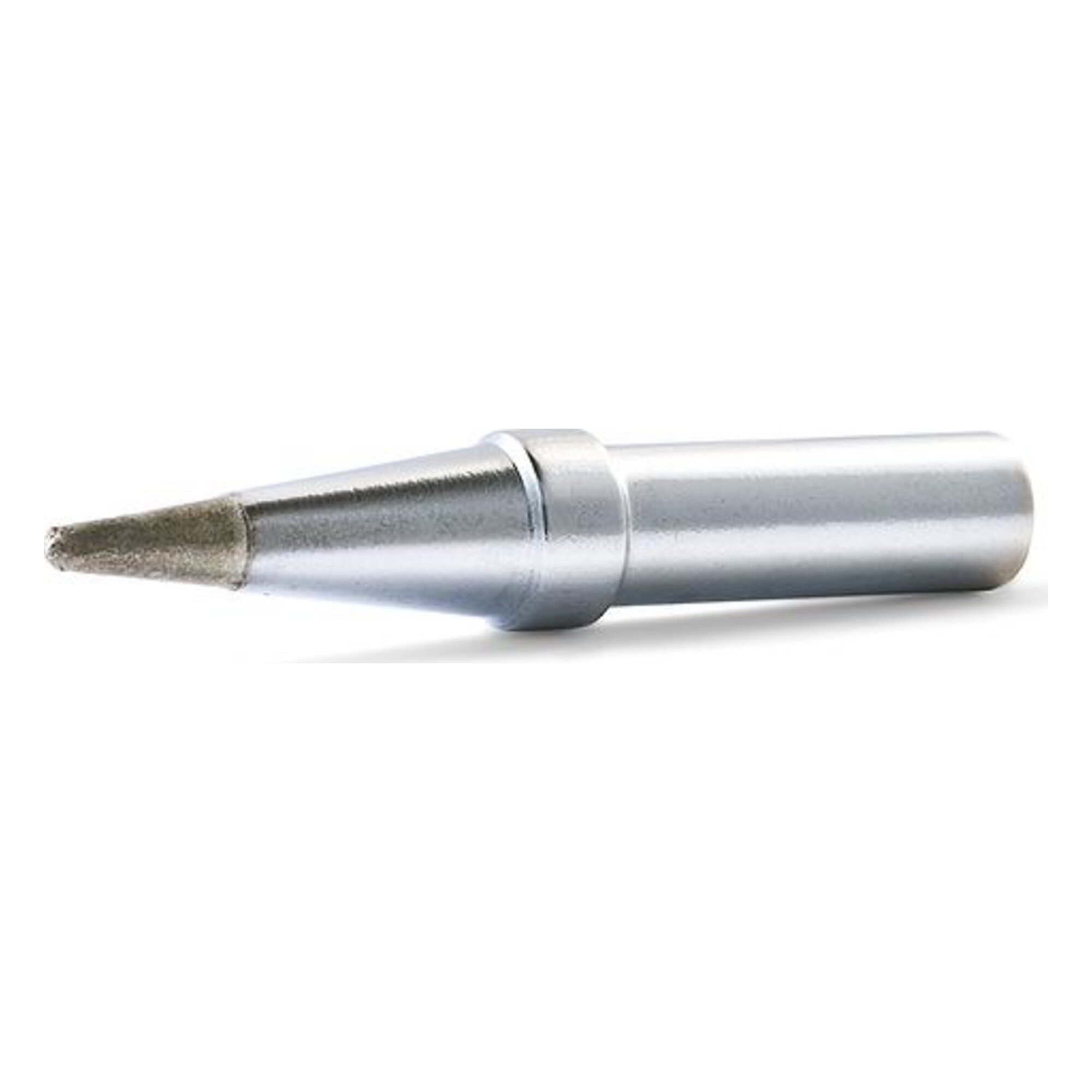

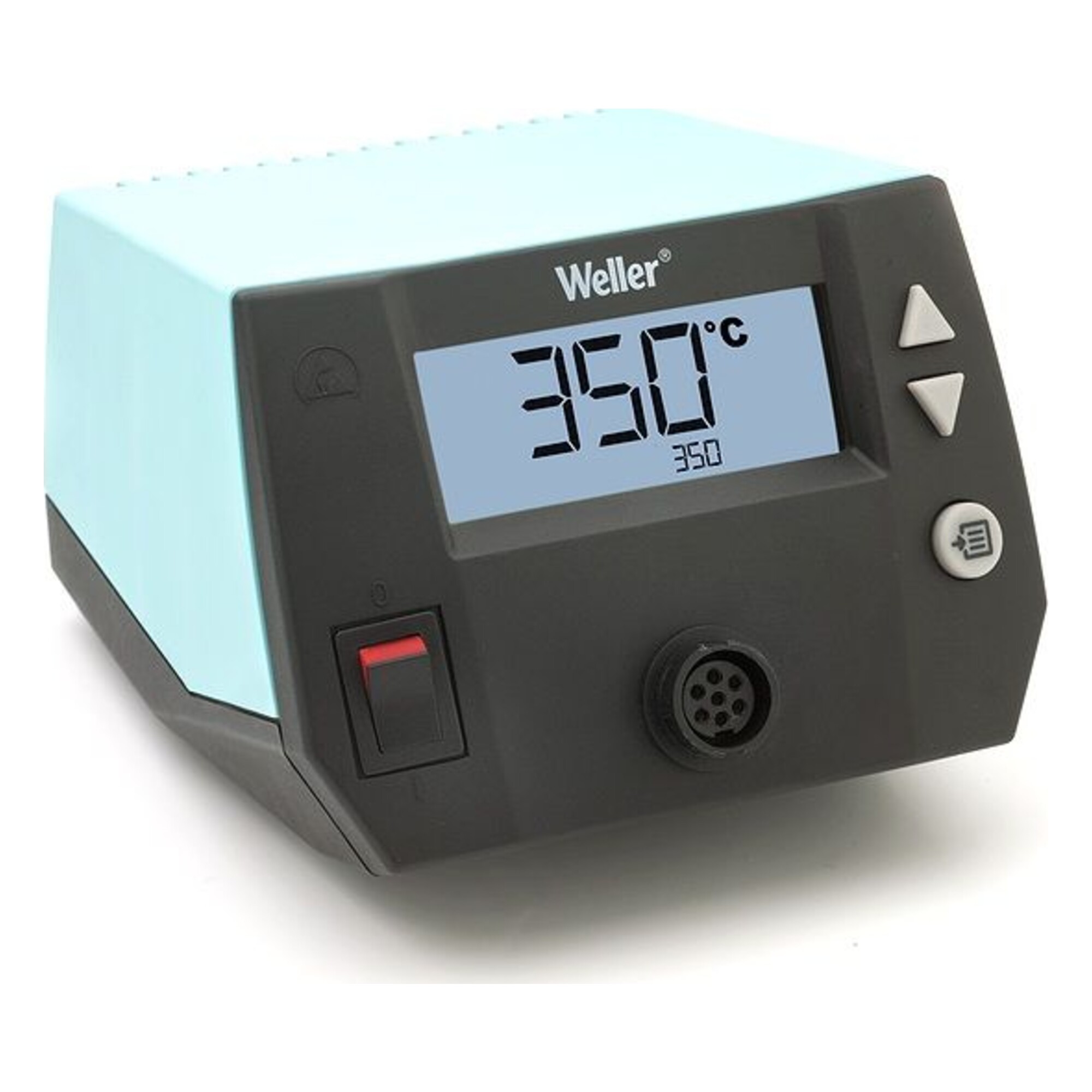

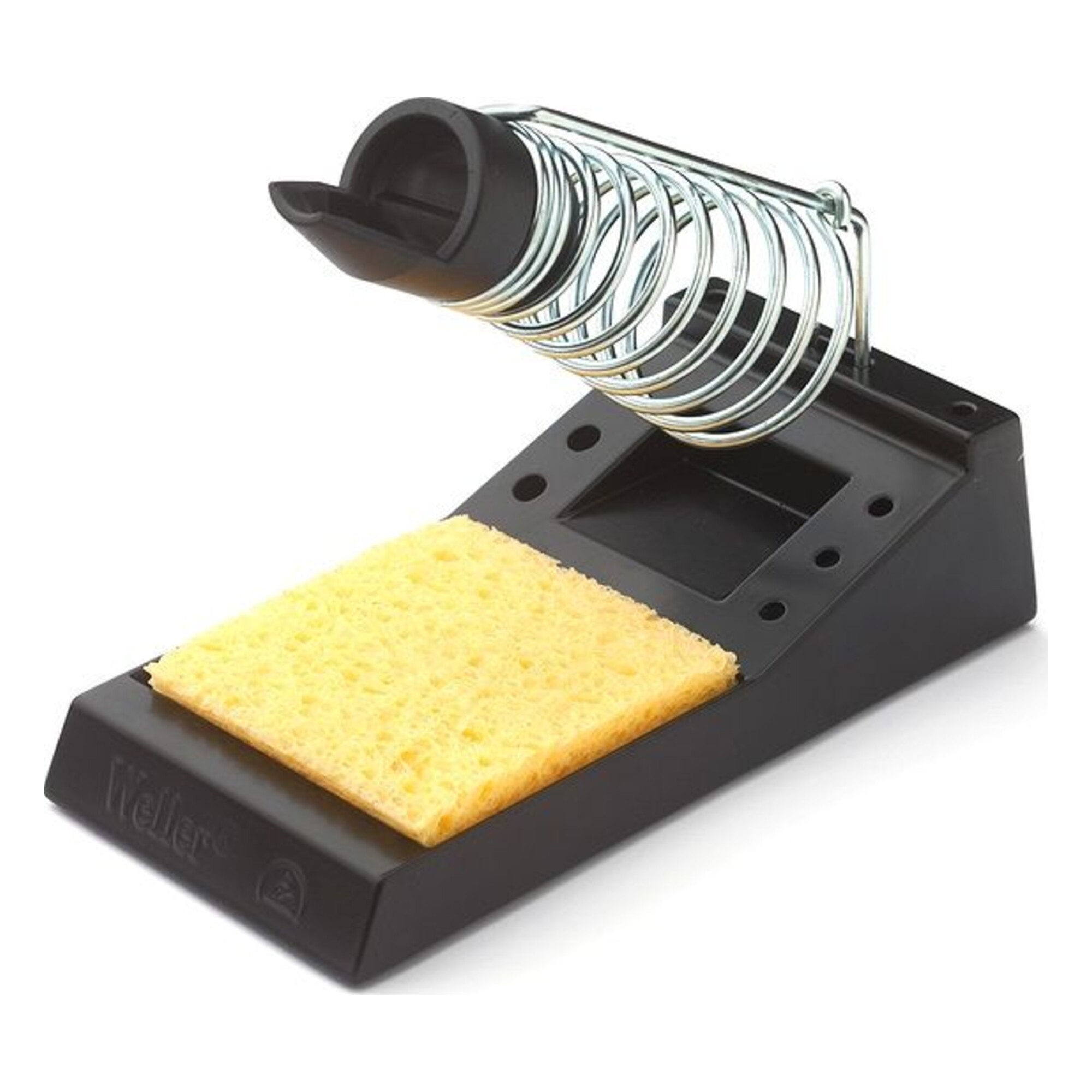

Power unit, 1 channel 70 W with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1,6 mm; ETB 2,4 mm

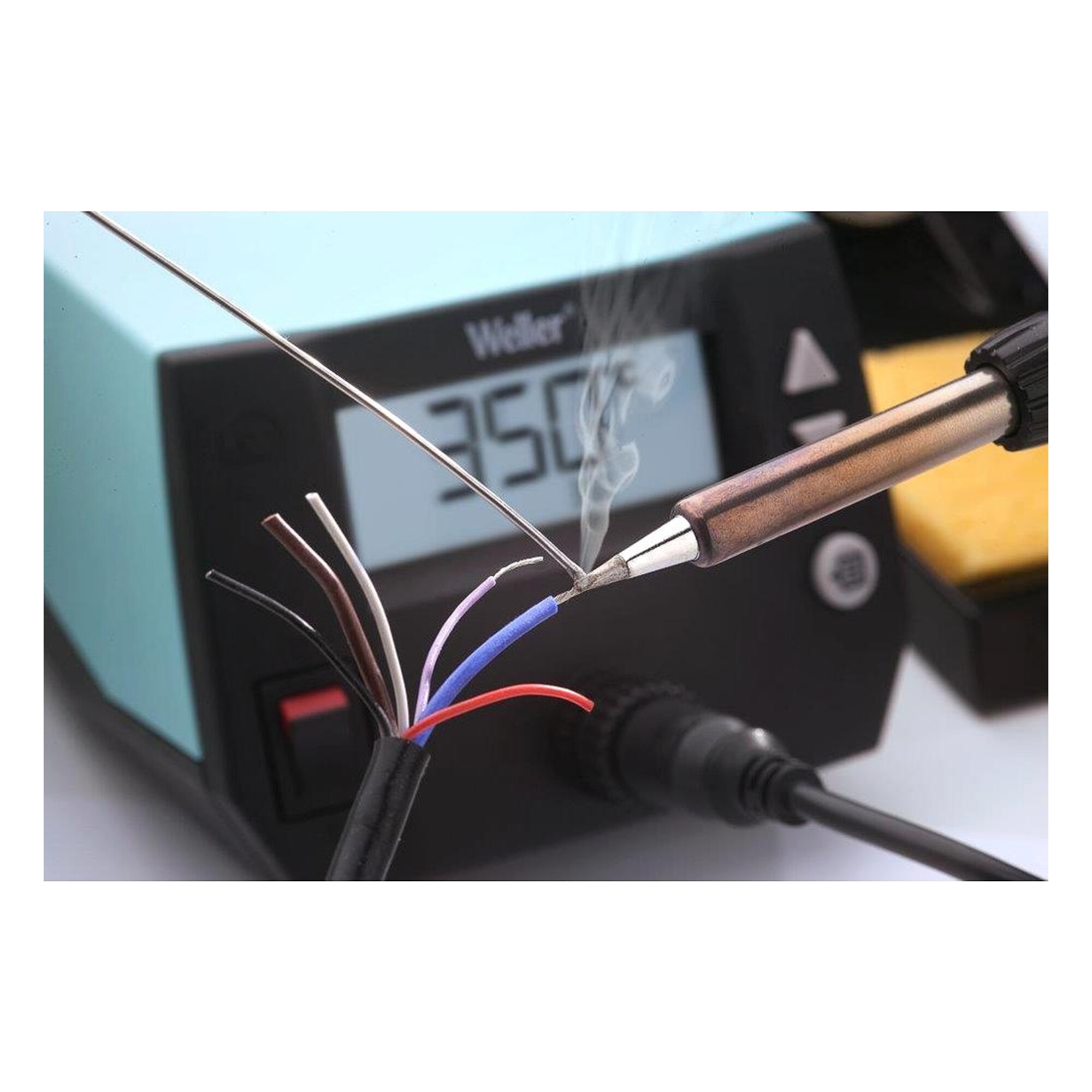

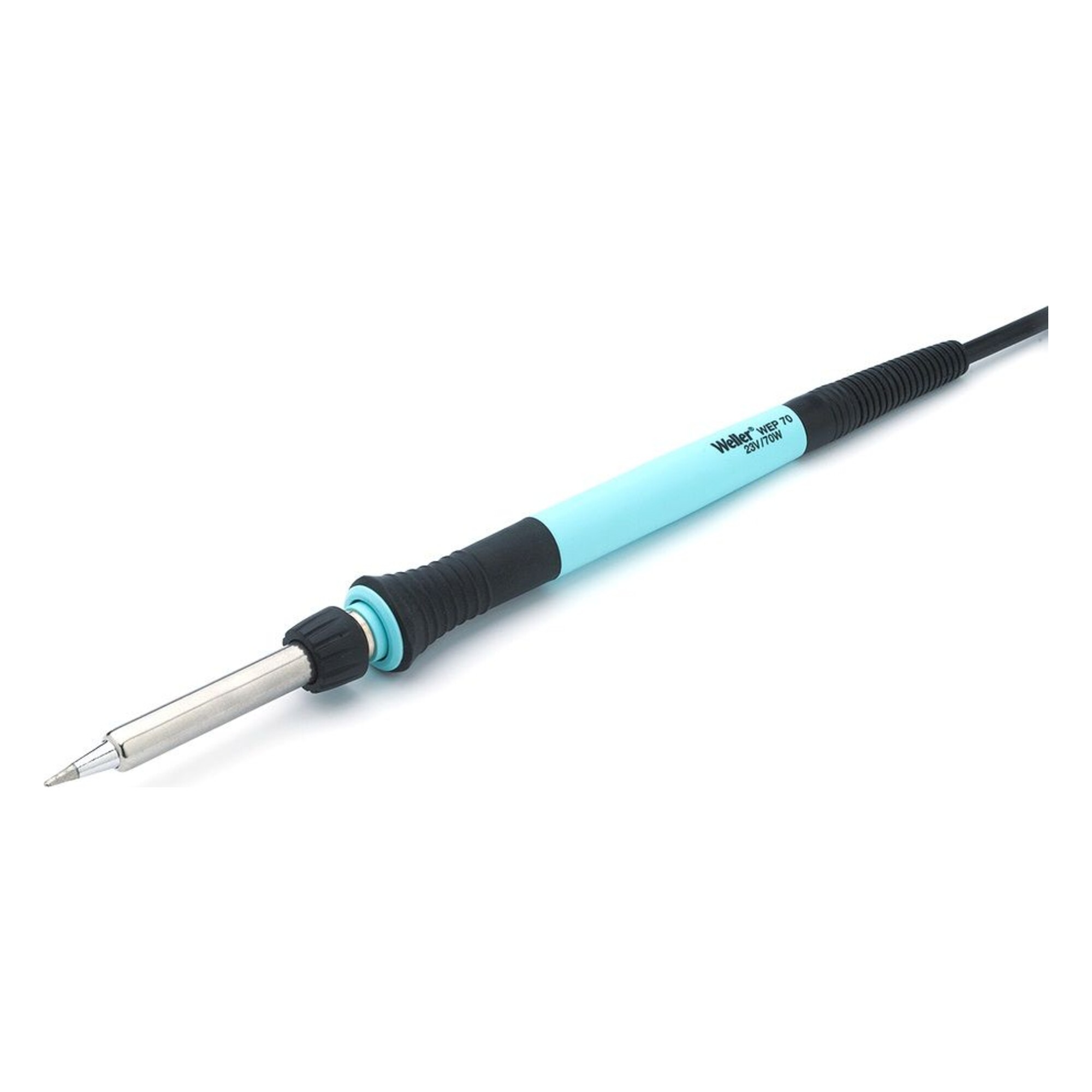

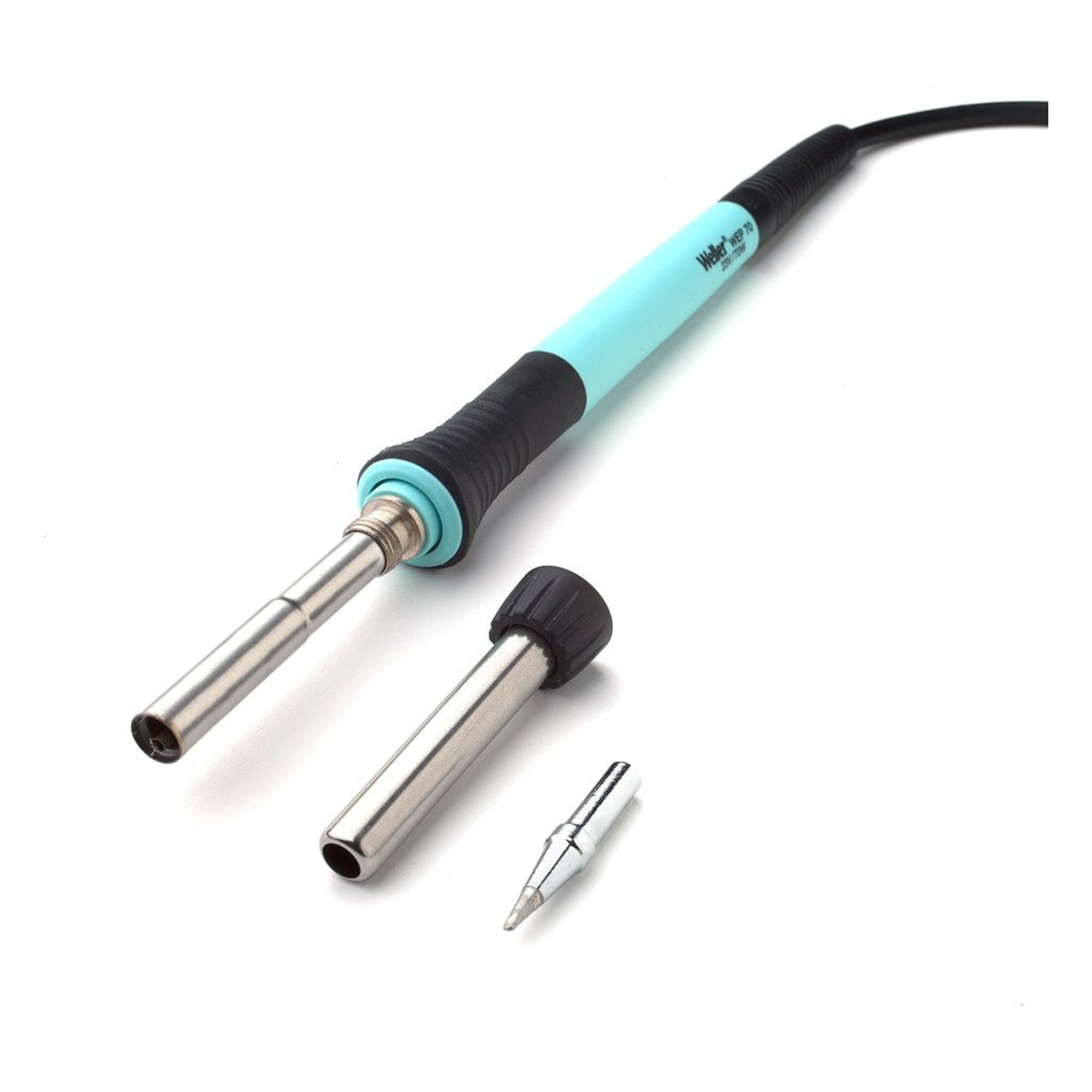

70W solder iron with ergonomic handle and providing toolless tip change
ESD safe station, iron and heat-resistant silicon cable for safe handling
Using ET soldering tips
Standby mode and auto setback conserves energy, protects equipment
Password-protected to preserve settings

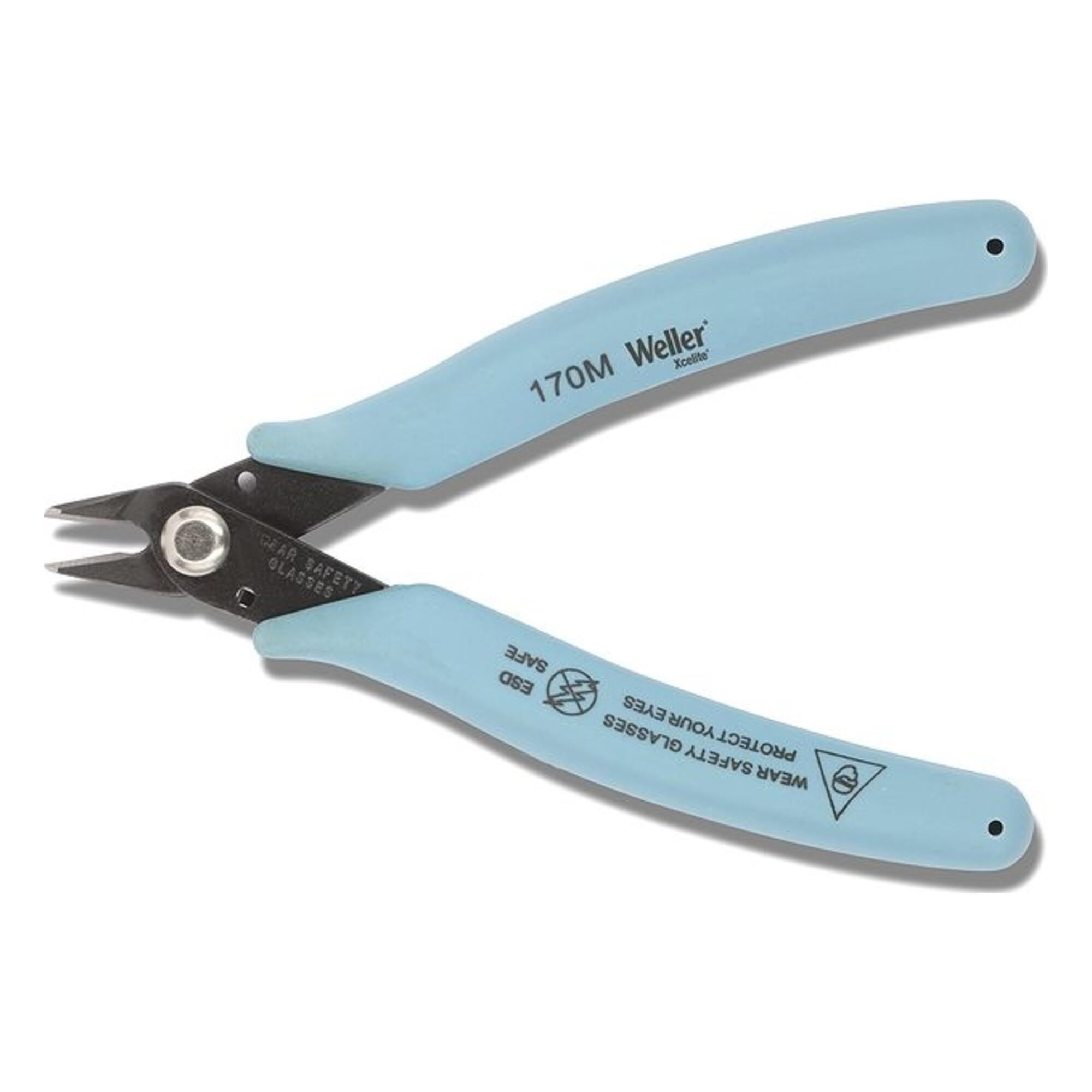

170MN general purpose shearcutter, diagonal, flush. Greatly reduced machanical shock delievered to the component, ESD safe

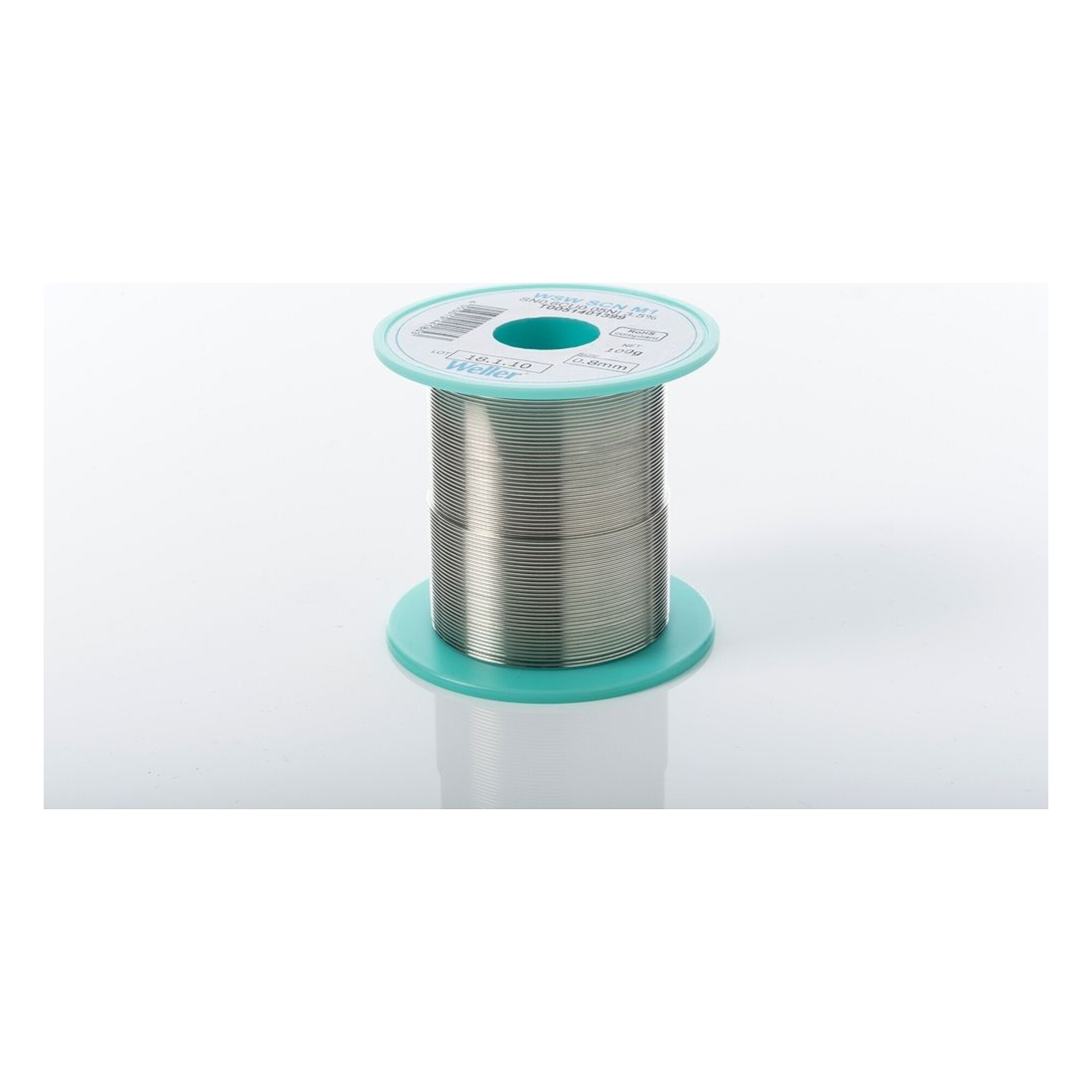

WSW solder wire; all purpose solder wire with excellent wetting properties

Datasheet

Технические характеристики

Dimensions L x W x H (mm)	150 x 120 x 98
Dimensions L x W x H (Inches)	5.91 x 4.72 x 3.86
Weight (approx.) in kg	3.07
Voltage	230 V
Channels	1
Temperature range (depends on tool) °C	100 - 450
Temperature range (depends on tool) °F	200 - 850
Temperature accuracy °C	Average tip temperature can be „offset“ to +/- 5°C at idle with no load
Temperature accuracy °F	Average tip temperature can be „offset“ to +/- 9°F at idle with no load
Temperature stability °C	± 6
Temperature stability °F	± 10
Heating time (approx.) in seconds (50–350 °C/120–660 °F)	28 sec.
Power	85 W
WE compatible	on

T0054104099 ET SMD Chip Soldering / Desoldering Tip 3,8 x 1,5 mm
T0052475099 ET Measuring tip ET Measuring tip for thermoelement Ø 0,5 mm
T0058720794 Spare barrel for ET-LT Adapter Spare barrel for ET-LT Adapter
T0054103999 ET SMD Chip Soldering / Desoldering Tip 2,5 x 1, 5 mm
T0054170399 ET Einschraubspitze M5 Außengewinde Screw in tip with M5 outside thread
...
